Receipt Printer VCP-80 80mm

The NUCOUN VCP-80 is an 80mm thermal receipt printer for small business checkout counters and selected NUCOUN money counter workflows. It can print everyday receipts and transaction records, and it can also connect with supported NUCOUN VC-3, VC-7, NC-5, and VS-75 money counters through the RS232 interface when a printed counting record is needed.

Best for: small businesses that need a practical 80mm receipt printer for checkout receipts, order tickets, cash drawer records, or supported NUCOUN money counter printout workflows. Not for: counting bills by itself, counting coins, sorting banknotes, or detecting counterfeit money.

Check current NUCOUN options on Amazon after confirming that the VCP-80 fits your receipt size, interface, and setup needs.

VCP-80 80mm Receipt Printer Overview

If you are looking for an 80mm receipt printer, a receipt printer machine, or a printer that can work with selected NUCOUN money counters, start by matching the interface and workflow. The VCP-80 is a printer, not a counter, but it can support receipt and record output in a cash handling setup.

• Product type: thermal line receipt printer
• Paper width: 79.5 +/- 0.5 mm
• Maximum print speed: 250 mm/s
• Instruction set: compatible with ESC/POS print instruction set
• Driver support: WIN2003, WINXP, WIN7, WIN8, WIN10, Linux, and Mac
• Interfaces: USB, serial RS-232, Ethernet, and cash drawer interface
• Supported NUCOUN money counter workflow: connects with VC-3, VC-7, NC-5, and VS-75 through RS232 interface for printout needs

Built for Practical Small Business Receipt Printing

NUCOUN customers often want equipment that is useful enough for daily work without paying for features they do not need. For the VCP-80 page, the strongest message is not a high-end claim; it is that the printer can handle practical receipt and record printing for a small cash-handling counter.

The VCP-80 can print checkout receipts, service receipts, order tickets, and transaction records. In a cash workflow, printed records can help staff compare receipts, drawer activity, and money counter output during shift handoff or end-of-day reconciliation.

Money Counter Printout Workflow

This is the part that should be stated carefully. The VCP-80 does not count cash, but it can serve as a printout device for selected NUCOUN money counters when connected through the RS232 interface.

If your main need is cash counting, review NUCOUN's money counter machines. If your main need is printing receipts or money counter records, the VCP-80 is the relevant receipt printer page.

Interface and Cash Drawer Support

The VCP-80 supports multiple wired connection options. This matters because receipt printer setup usually depends on the POS device, money counter interface, cash drawer, and driver environment.

• Serial interface: DB9 female connector; communication baud rate can be set via DIP switch.
• Serial protocol: supports RTS/CTS and XON/XOF handshake protocols; data structure is 8-bit, no parity, and 1 stop bit.
• USB interface: USB-A to USB-B wiring harness with standard USB Type B interface.
• Network interface: standard RJ45-8P interface with 10M/100M self-adaptive transmission, 100M network LED indication, and data communication LED indication.
• Cash drawer interface: 6-wire RJ-11 socket; output DC 24V/1A power signal to drive a compatible cash drawer.
• Power interface: DC 24V power plug.

Printing Functions

For basic receipt output, speed and compatibility are the most important. The VCP-80 also supports several printing functions that may matter when working with POS software or connected devices.

• Double-width and double-height printing of ANK characters
• Custom characters and Chinese characters
• Dot matrix graphics with adjustable character spacing
• Dot maps with different densities
• Download graphics printing
• Printer self-test function to check whether the printer is working normally

VCP-80 Driver Downloads and Setup

Users may search for VCP-80 driver or receipt printer machine setup information after purchase. Use the official NUCOUN support resources below for drivers, installation instructions, and the setting integration tool.

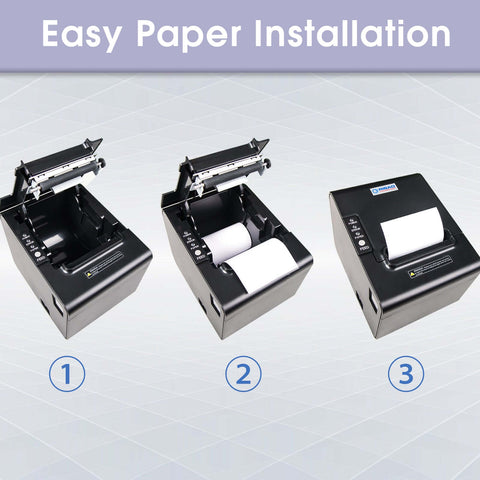

Paper Loading and Basic Setup

The VCP-80 uses 80mm thermal paper rolls and supports easy paper loading. For many small businesses, easy paper replacement is a practical daily advantage because staff may need to change rolls during checkout hours.

1. Open the upper cover of the printer.
2. Insert the 80mm thermal paper roll as shown in the product image.
3. Pull out a short section of paper and close the cover.
4. Tear off the paper with the cutter.

For setup, turn off both the printer and the PC host or connected machine before connecting cables. Connect the matching communication cable from the printer data port to the serial, USB, or network port of the PC host or machine. If using an electrically openable cash drawer, connect the RJ-11 connector to the cash drawer interface and confirm the cash drawer specifications match the printer's drive specifications. Use the dedicated printer power adapter. The RS-232 serial interface uses a default communication baud rate of 115200.

VCP-80 vs. VCP-8370: Which Receipt Printer Page Should You Review?

NUCOUN has more than one receipt printer page, so the pages should not repeat the same positioning. The VCP-80 page should focus on 80mm receipt printing and selected NUCOUN money counter printout workflows, while the VCP-8370 page can carry more specific POS 8370 driver and wired POS setup intent.

Common Questions

Use these questions to confirm whether this page matches your needs before choosing a receipt printer.

Can the VCP-80 connect to NUCOUN money counters?

Yes, the VCP-80 can connect with supported NUCOUN VC-3, VC-7, NC-5, and VS-75 money counters through the RS232 interface for printout needs. Confirm the model, cable, and settings before setup.

What receipt paper does the VCP-80 use?

The VCP-80 uses 80mm thermal paper rolls. The listed paper width is 79.5 +/- 0.5 mm.

Where can I download VCP-80 drivers?

Use the NUCOUN Support Center or the VCP-58PLUS & VCP-80 Series driver links listed on this page for Windows, Linux, and Mac resources.

Should I choose VCP-80 or a money counter?

Choose VCP-80 if you need printed receipts or printout records from supported NUCOUN devices. Choose a money counter if you need to count bills, verify totals, or support cash drawer reconciliation after the shift.
